UniQ 2400W

The UniQ 2400 series are high frequency battery chargers features wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 92%, low energy consumption, complying with CEC. The charger can be programmed for charging various types of battery packs. They are widely used for forklift trucks, pallet stackers, tow tractors, utility vehicles, aerial work platforms, golf carts, floor machines, etc.

تسليط الضوء على وظيفة:

Optional CAN bus, RS485, I²C, Wi-Fi, Bluetooth communication for machine integration or lithiumBMS.
User friendly LED indicators for AC source, battery status, charging, error.
Field programmable with up to 30 charge profiles.
Auto-recharge for low voltage in maintenance mode.
OEM customizable & field replaceable AC / DC cabling.
Additional portable handle available.

حجم المعلمة

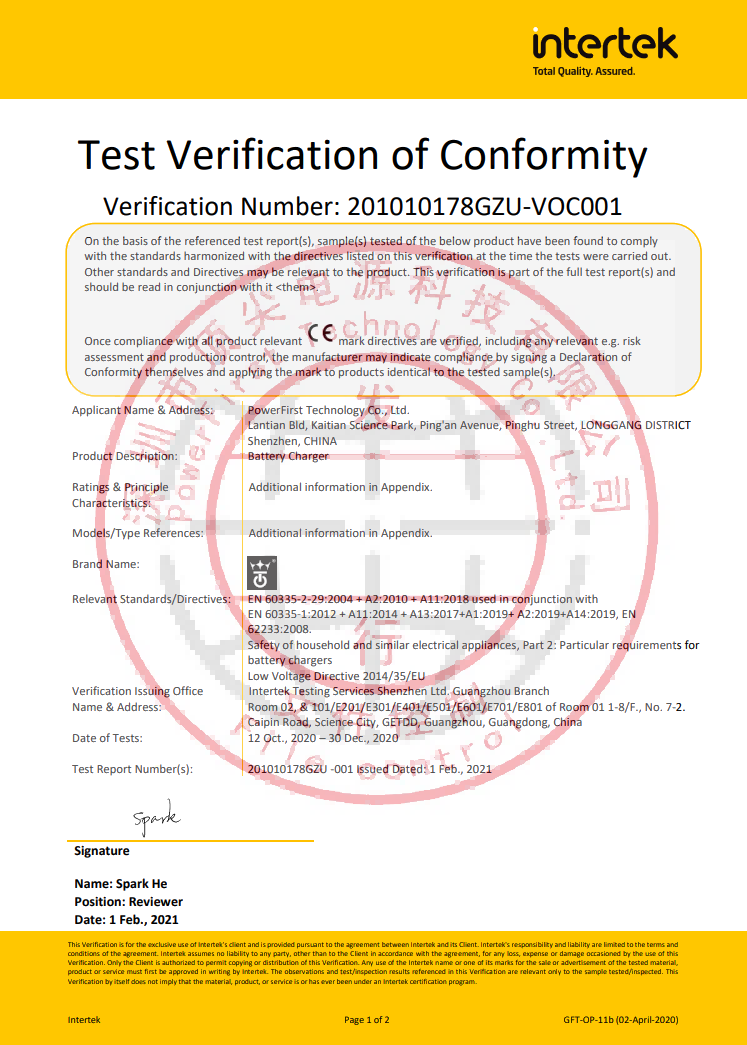

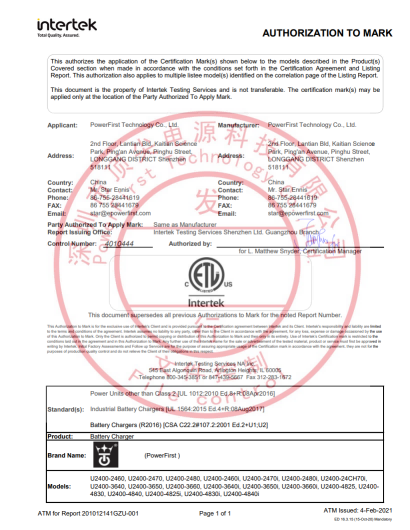

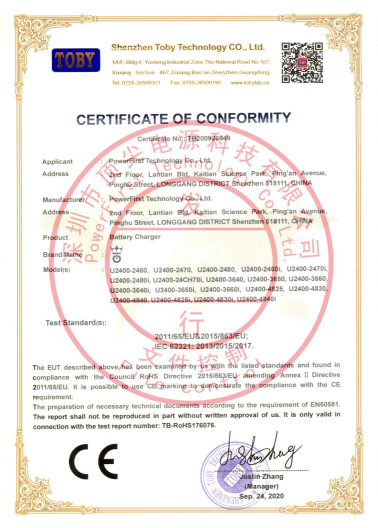

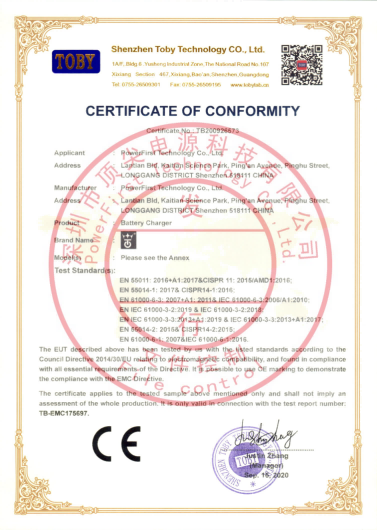

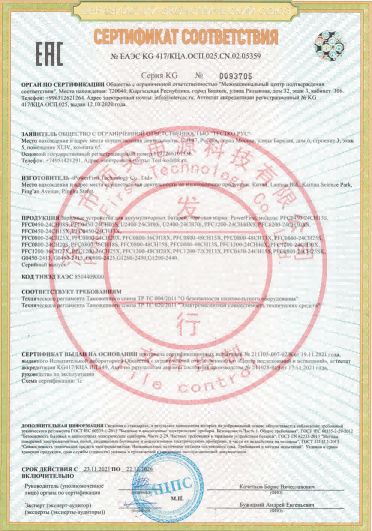

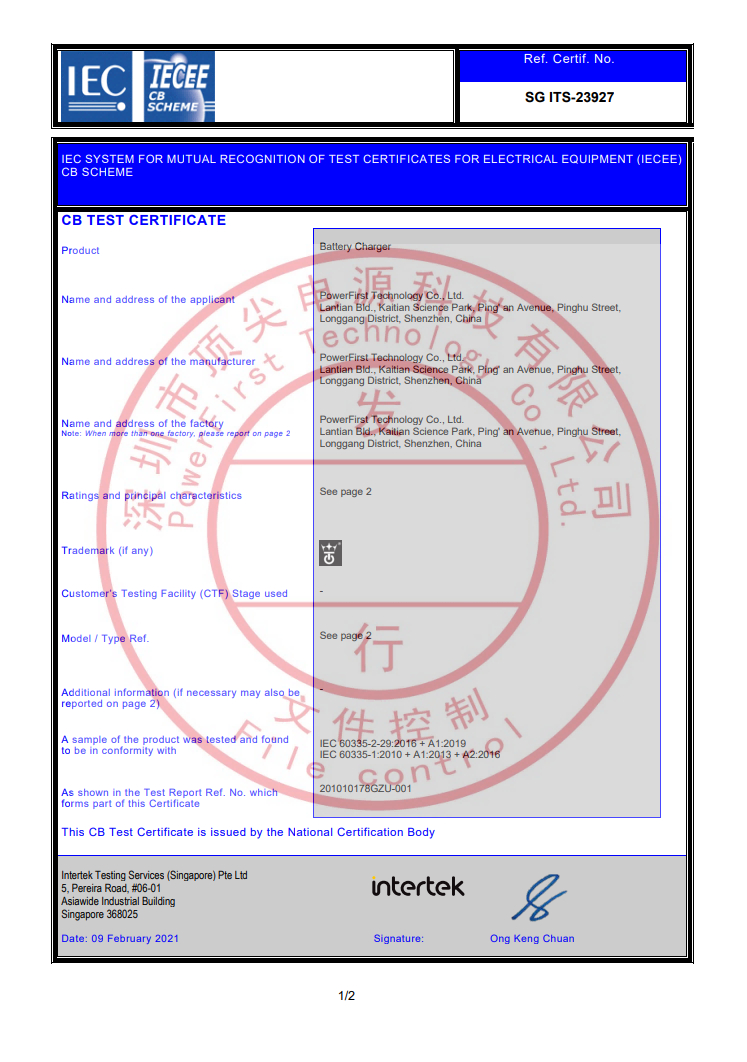

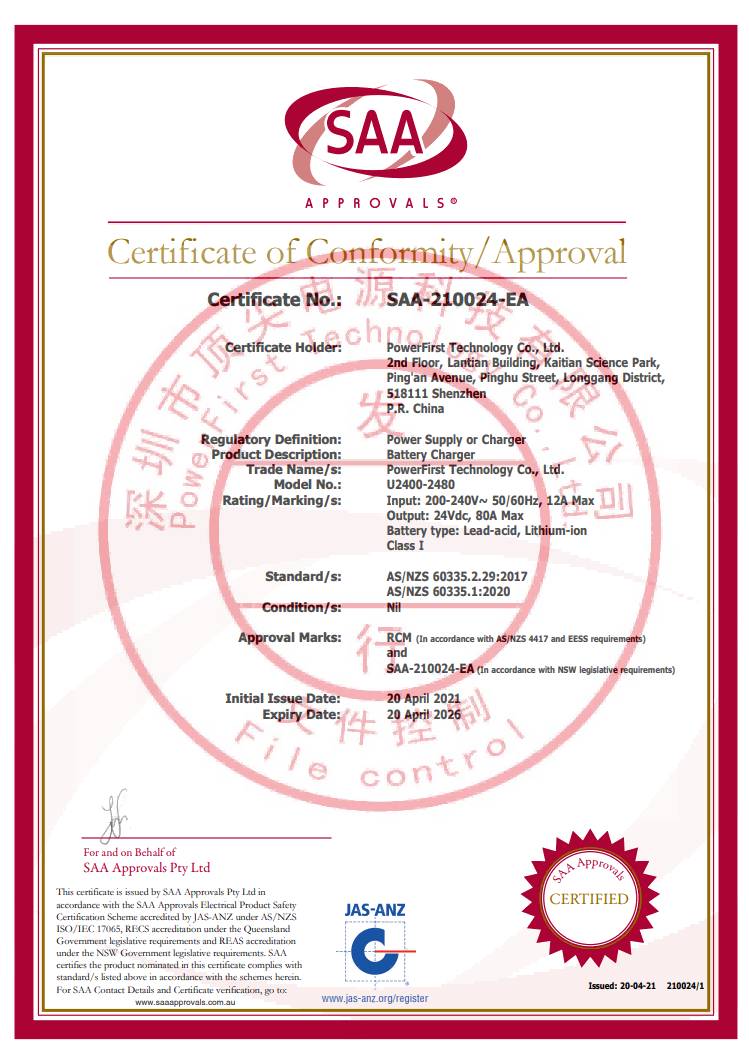

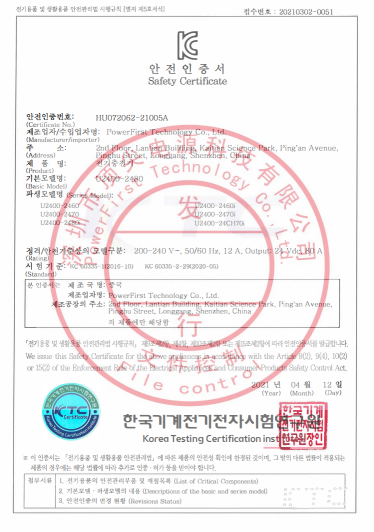

السلامة والتوافق الكهرومغناطيسي

دعم نوع البطارية

مرونة التخصيص

العملاء ودراسات الحالة

تطبيق المنتج

تحميل بيانات المنتج

المنتجات ذات الصلة

حجم المعلمة

DC Output	24VDC	36VDC	48VDC	72VDC
Max. DC output voltage	33V	49.5V	66V	82.5V
Max. DC output cuttent	80A	60A	40A	30A
Max. DC output power	2400W
Deep discharge recovery (minimum voltage)	16V	24V	32V	40V
Max. C3 interlock current	7A
Battery type	Lead acid (wet / AGM / gel), lithium
Reverse polarity	Electronic protection with auto-reset
Short circuit	Electronic current limit

AC Input
AC input voltage range	85-270 VAC
Nominal AC input voltage	100-240VAC ±10%
Nominal AC input frequency	50 / 60Hz
Maximum AC input current	27A
Nominal AC input current	27A @ 100VAC	23A @ 120VAC
	12A @ 230VAC	12A @ 240VAC
Power factor	>0.99 @ 120VAC	>0.98 @ 230VAC

Regulatory
Effciency	90% at full load, 120 VAC, 48 VDC \| 92% at full load, 240 VAC, 48 VDC

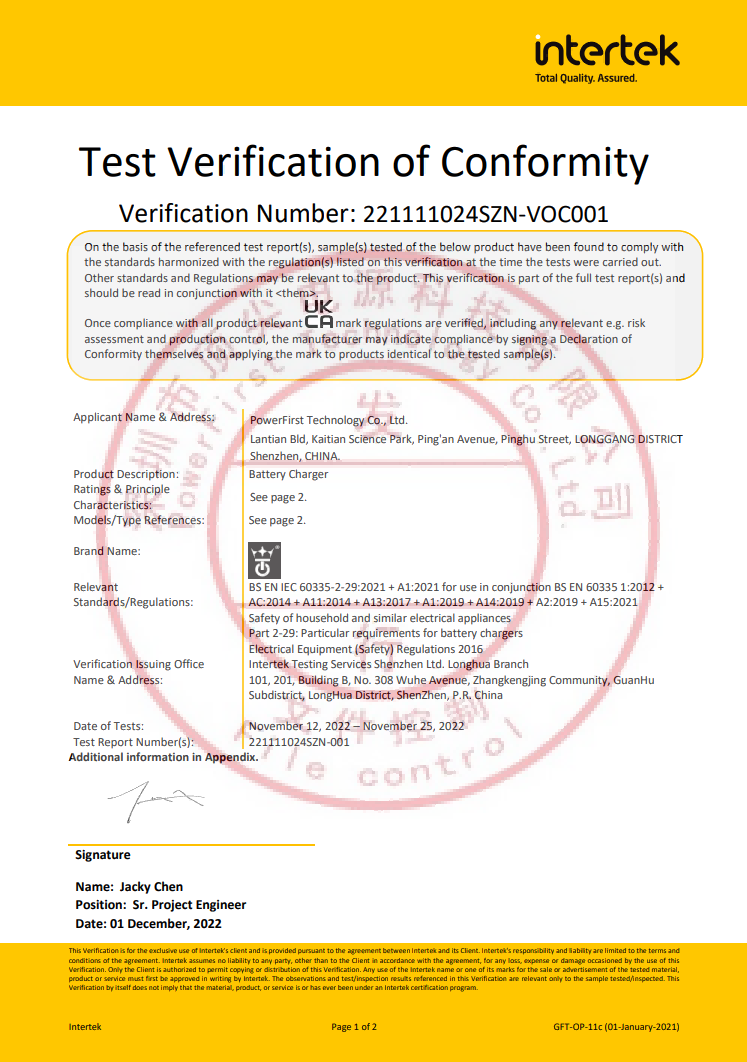

Safety (LVD)	UL1564, CSA 107.2, EN 60335-2-29, BS ENIEC60335-2-9

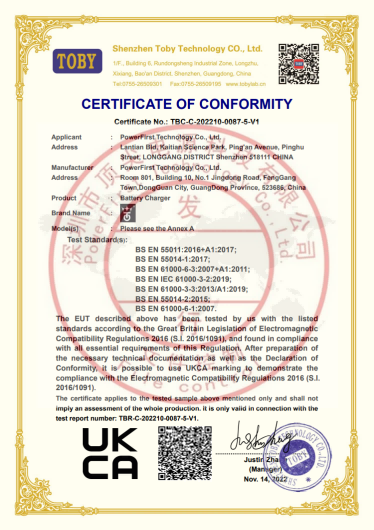

Emissions (EMC)	EN55014
Immunity (EMC)	EN 61000-3-2, EN 61000-3-3

Mechanical
Dimensions	L392.4 x W270 x H97.5 mm
Weight	9.5 kg
AC input connector	IEC320 / C14 (requires country-specifc cord)
DC output connector	M6 threaded fasteners for ring terminals (field replaceable)
Mounting holes	10 mm diameter slots
Cooling	Active cooling with fan (Variable speed, feld serviceable, field replaceable)

Environmental
Enclosure	IP21
Mechanical shock & vibration	GMW3172
Corrosion & humidity
Thermal fatigue
Operating temperature	-20°C to +45°C	Derated at >45°C
Storage temperature	-20°C to +60°C
